70KW IP23 Resistive Load Bank / Mobile Load Bank For UPS System Testing

1. Resistive type of load, PF = 1.0. Stainless steel sheathed elements manufactured from high grade magnesium oxide.

2. Rated testing voltage: 500VDC/750VDC
3. Cooling mode: Forced air-cooled
4. Working mode: Load step control
Total testing capacity ranges from 0kw to the max consisting of 200kw, 400kw, 600kw, 800kw, 1000kw,1000kw,2000kw,2000kw,2000kw in total 9 steps. From 0kw to the max, any load combination is achievable.
5. Load bank features world-famous components to ensure reliable performance and longer service life including: contactors, knobs and indicators,Circuit breakers,intermediate relays,terminal blocks
6. Insulation grade: F
7. Load control accuracy: ±5%.
8. Load bank protections: Over heating protection, cooling fans failure protection and over load protection with alarm.
9. Control mode: Two control modes available:
A) Local manual control;
B) Optional: Manual control via a remote control panel
10. Parameter display and measurement:
Control panel contains Multifunction Electricity Meter displaying voltage, current, load power, reactive power, apparent power, power factor, frequency etc.
(Optional: A professional generator tester displays and measures all sorts of steady, dynamic parameters as well as harmonic wave, can be connected to a PC for data recording and test report printing). "

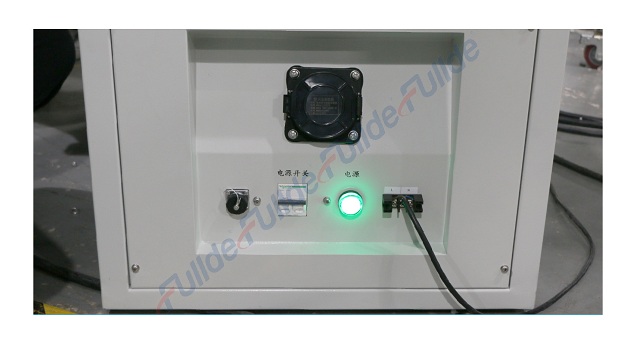

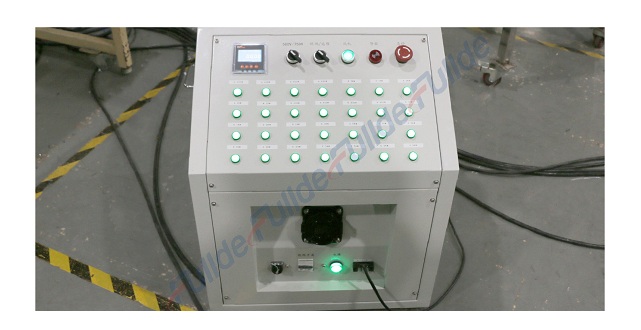

Detailed Pictures of Load Bank:
